Wi-fi Modules
Name Module | Connector type | Client Mode | Side | Supply Voltage | Transceiver type | Data Interface | Data Protocol | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|

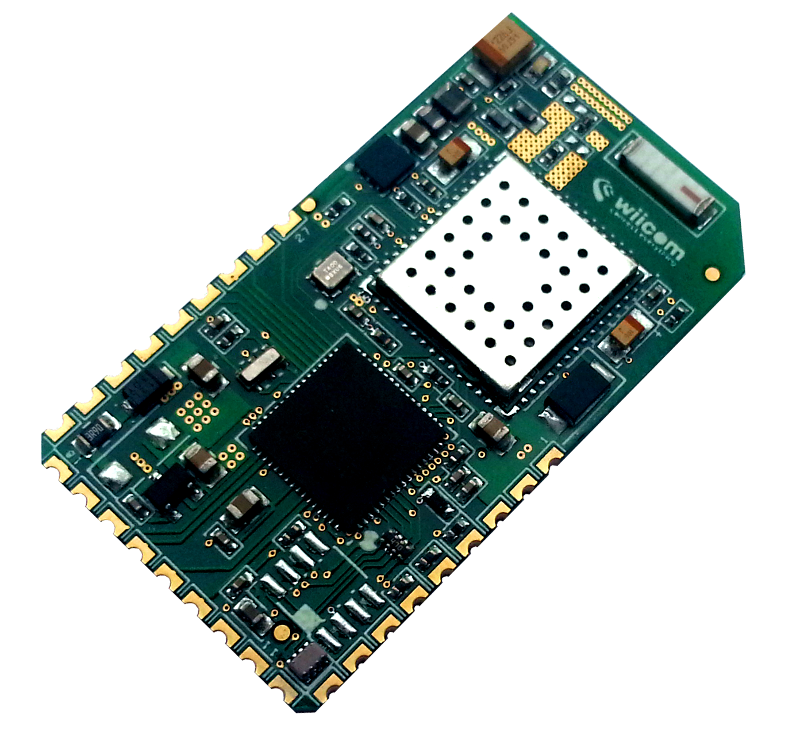

XCWIFI | – | X | Single | 4-10 Vdc | – | UART, USB 2.0, 8 Digit I/O, 6 Analog Input | – | 46×25.4×4 |
XCWIFI-UART | – | X | Single | 4-10 Vdc | – | UART | UART direct | 46×25.4×4 |
XCWIFI-485 | – | X | Single | 4-10 Vdc | – | UART | UART/485 direct, MODBUS | 46×25.4×4 |
XCWIFI-CAN | – | X | Single | 4-10 Vdc | – | CAN | CANBUS | 46×25.4×4 |
Name Module | Connector type | Client Mode | Side | Supply Voltage | Transceiver type | Data Interface | Data Protocol | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|

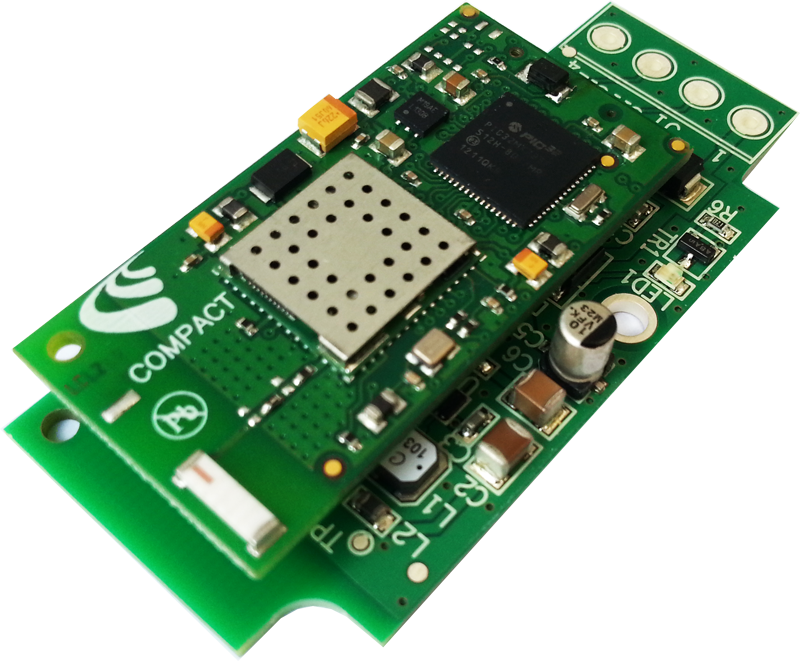

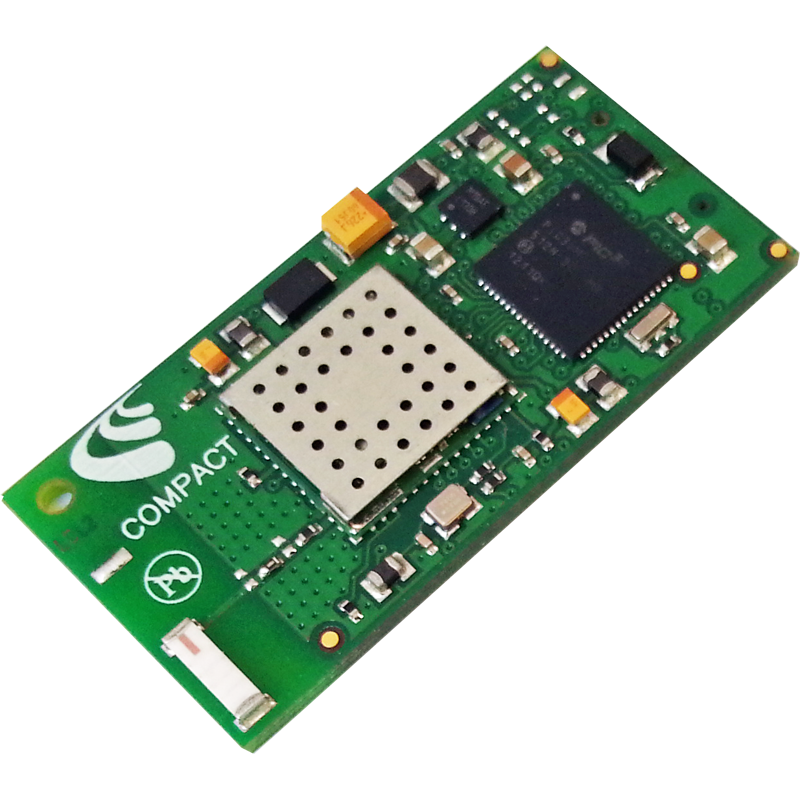

Compact-S-UART | Erni 10 poles | Double | 4-10 Vdc | – | UART, 2 Digit I/O | UART direct , 2 bit data | 42x23x5 | |
Compact-CS-UART | Erni 10 poles | X | Double | 4-10 Vdc | – | UART, 2 Digit I/O | UART direct , 2 bit data | 42x23x5 |
Compact-S-D4IO | Erni 10 poles | Double | 4-10 Vdc | – | 4 Digit I/O | 4 bit data | 42x23x5 | |
Compact-S-485 | Erni 10 poles | Double | 4-10 Vdc | – | UART | UART/485 direct, MODBUS | 42x23x5 | |
Compact-CS-485 | Erni 10 poles | X | Double | 4-10 Vdc | – | UART | UART/485 direct, MODBUS | 42x23x5 |
Compact-CS-D4IO | Erni 10 poles | X | Double | 4-10 Vdc | – | 4 Digit I/O | 4 bit data | 42x23x5 |
Compact-CS-CAN | Erni 10 poles | X | Double | 4-10 Vdc | – | CAN, 2 Digit I/O | CANBUS, 2 bit data | 42x23x5 |
Name Module | Connector type | Client Mode | Side | Supply Voltage | Transceiver type | Data Interface | Data Protocol | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
PWR-F-RS232-S | 5.08 through holes | Double | 7-28 Vdc | RS232 | RS232 | RS232 direct | 66x30x12 | |
PWR-F-RS232-CS | 5.08 through holes | X | Double | 7-28 Vdc | RS232 | RS232 | RS232 direct | 66x30x12 |
PWR-F-RS485-S | 5.08 through holes | Double | 7-28 Vdc | RS485 | RS485 | RS485 direct, MODBUS | 66x30x12 | |
PWR-F-RS485-CS | 5.08 through holes | X | Double | 7-28 Vdc | RS485 | RS485 | RS485 direct, MODBUS | 66x30x12 |
PWR-F-CAN-S | 5.08 through holes | Double | 7-28 Vdc | CAN | CAN | CANBUS | 66x30x12 | |
PWR-F-CAN-CS | 5.08 through holes | X | Double | 7-28 Vdc | CAN | CAN | CANBUS | 66x30x12 |
Name Module | Connector type | Client Mode | Side | Supply Voltage | Transceiver type | Data Interface | Data Protocol | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|

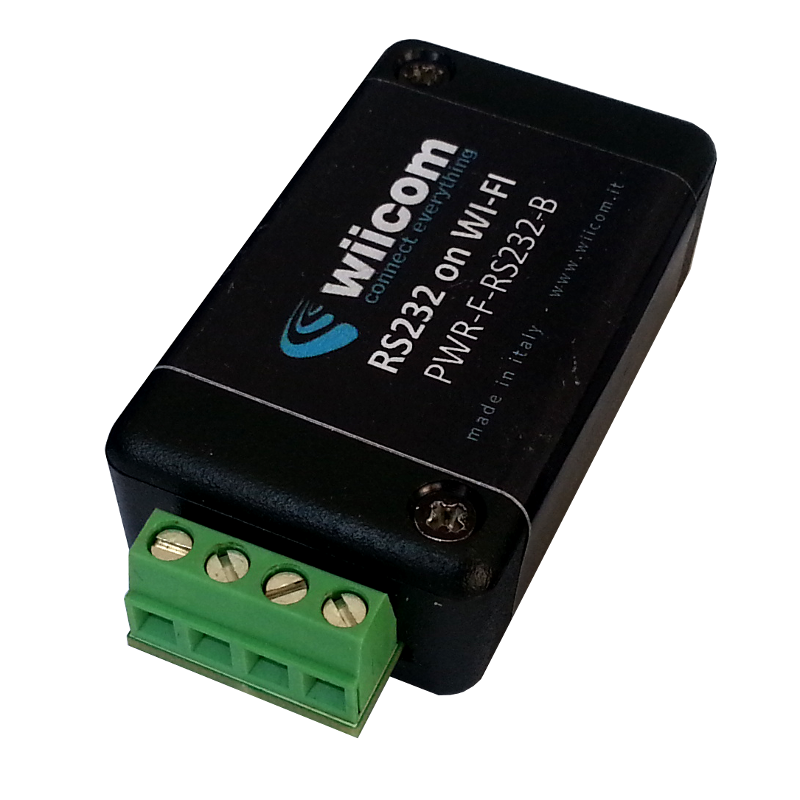

PWR-F-RS232-B | Screw terminal 5.08 | X | 7-28 Vdc | RS232 | RS232 | RS232 direct | 68x34x20 | |
PWR-F-RS232-B9 | DB9 | X | 7-28 Vdc | RS232 | RS232 | RS232 direct | 84x40x20 | |
PWR-F-RS485-B | Screw terminal 5.08 | X | 7-28 Vdc | RS485 | RS485 | RS485 direct, MODBUS | 68x34x20 | |
PWR-F-RS485-B9 | DB9 | X | 7-28 Vdc | RS485 | RS485 | RS485 direct, MODBUS | 84x40x20 | |
PWR-F-D4IO-BI | Screw on DIN-rail | X | 7-28 Vdc | – | 4 Digit Output 0-24Vdc | 4 bit data | 50x72x104 | |
PWR-F-D4IO-BO | Screw on DIN-rail | 7-28 Vdc | – | 4 Digit Output 0-24Vdc | 4 bit data | 50x72x104 | ||
PWR-F-CAN-B | Screw terminal 5.08 | X | 7-28 Vdc | CAN | CAN | CANBUS | 68x34x20 | |
PWR-F-CAN-B9 | DB9 | X | 7-28 Vdc | CAN | CAN | CANBUS | 84x40x20 |
